Avoid short circuits (connecting power directly to ground), and while you’ll be sharing the ground line between power supplies, don’t try to connect two separate voltage sources to each other - do not connect the 9V supply and the Arduino’s 5V supply into the same supply row on the breadboard. To avoid some mistakes follow the schematics carefully. If battery is improperly connected it can damage your electronics. WARNING We will use a 9V battery to power motors.
The operating voltage - this can vary, from 3 V to more than 12 V.Small motors are used for many applications, from small fans to robot cars.Ĭonsider following parameters during motor selection: For this reason you mast use a diode in your circuit to ensure that the motor cannot send current back when it is forcibly turned or brakes. It is a cheaper way to create your own generator.ĪTTANCION: Same effect can cause some problems in your electrical circuit when a DC motor spins, energy is built up and stored in the inductance of the motor coils and when DC motor stops or manually turned on - it will create current in the opposite direction. We are using this future to power LED lights from a small wind turbine. When you will rotate rotor electricity will be induced in coils, and current will flow in the electrical circuit. NOTE: Nice future of the brushed DC motors is that they can be used as generators. We will use a brushed DC motors which is cheap and widely used in the maker projects.

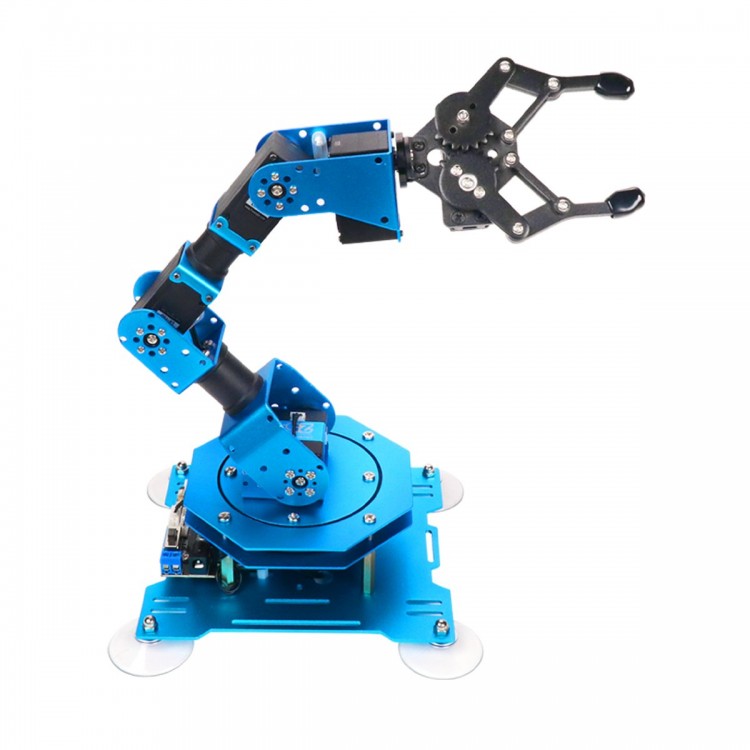

#Arduino robotic arm instructables black how to
We’ll learn how to control the speed and direction of the motors.
#Arduino robotic arm instructables black driver
In this step we will connect two DC motors to the L298N H-Bridge motor driver and we will use a small program to make them turn. In many robotic projects you will use DC motors and stepper.
